Snapshot creation /reversion/ deletion/ listing with vim-cmd

Posted on 1:19 PM by Unknown

    Here we are going to use the command line on a esxi host to create, revert, and delete snapshots.

    First ssh into your host.
    Important thing is to get the VMID of your target vm.

    GET VMID :  vim-cmd vmsvc/getallvms
    Now find your VM and the first column is your VMID
    Example for vm: 250-clonestorageprofile
    The vmid is 20






    CREATE SNAPSHOT:   vim-cmd snapshot.create vmid [snapshotName] [snapshotDescription] [includeMemory] [quiesced]

    Now we are going to make a snapshot
     snapshot.create vmid [snapshotName] [snapshotDescription]   are the most important things.
    For our example: we will use   snapshot.create 20 testclone1




    LIST SNAPSHOT:    vim-cmd snapshot.get vmid
    Let us now see the snapshot that was made!
    For our example: we will use   vim-cmd snapshot.get 20

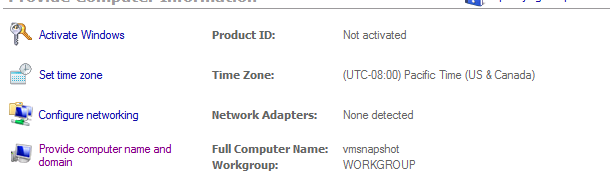

    For our example the server has a random name:


    Lets change the name to : vmsnapshot



    Name has been changed.


    Now lets revert the snapshot. Since it isnt on a domain, it doesn’t matter.

    revert root snapshot::    vim-cmd snapshot.revert vmid  root






    You have to power on the vm now.
    Now if we go back to the vm after its powered on you will see the name is back to the old one.



    Remove all snapshots:



    Cleanup: vim-cmd vmsvc/snapshot.removeall [VMID]




    No more snapshots!

Email ThisBlogThis!Share to XShare to FacebookShare to Pinterest
Posted in command line, esxi, snapshots, ssh | No comments
